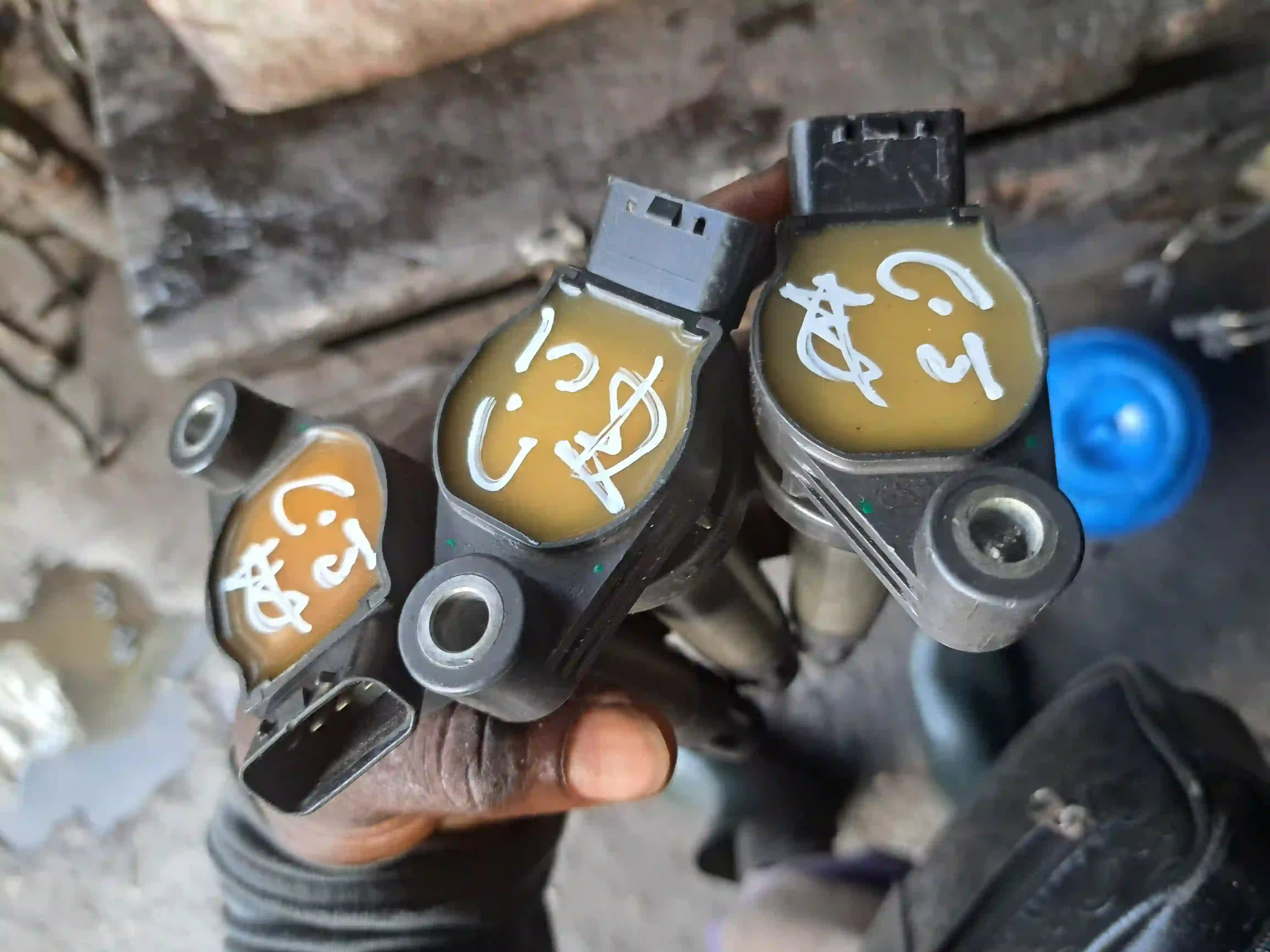

Toyota 3MZ spark plug Coil
Services
Posted 8 months ago
10 Views




New
PAY ON DELEVERY
Specifications
Category
Services
Sub Category
Automotive services
Company Name
CJ Nwobodo Auto's
Type of Services
Other
Work Experience
more than 5 years
Description
very good and in a good condition
Technical Details
The 3MZ-FE engine uses spark plugs with the following specifications - *Spark Plug Type:* - Denso: SK20R11 - NGK: IFR6A11 - *Spark Plug Gap:* - 1.0-1.1 mm (0.039-0.043 in) - *Spark Plug Tightening Torque:* - 25 Nm (2.5 kg⋅m, 18 ft⋅lb) - *Ignition Coil:* - The DIS (Direct Ignition System) provides 6 ignition coils, one for each cylinder, with integrated spark plug caps and an igniter When inspecting or replacing spark plugs, make sure to: - Use a spark plug wrench (16 mm) for removal and installation - Check the spark plug electrode gap and adjust if necessary - Tighten the spark plug to the specified torque - Replace spark plugs every 120,000 miles or as recommended by the manufacturer.
